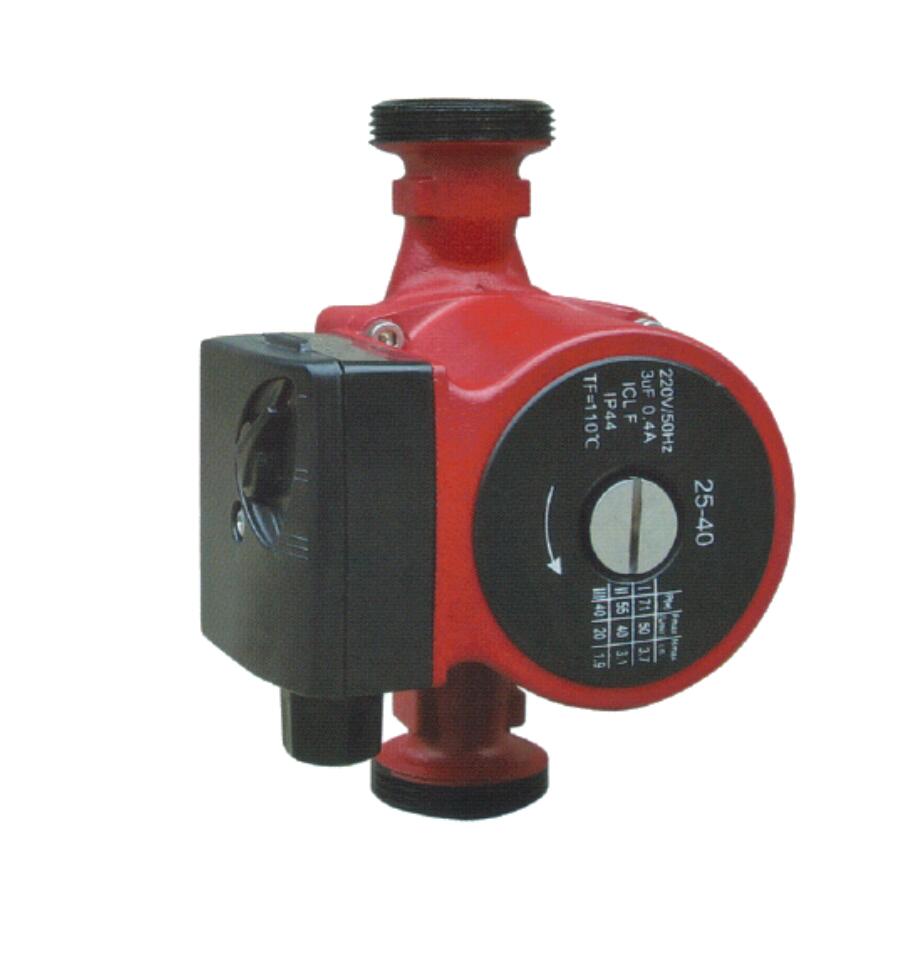

Features
Thie and maintenance-free built-in automatic switch, install and use are more convenie %y completely, Mechanical seal is not required,
thus completely solve pump leaking, adots the high rigidity stainless steel of motor shaft, graphite bearing, water cycle between stator
and rotor, Not only for cooling, also can be used for bearing lubrication, completely solved the noise problem in working, advanced
scientific design, Normal continuous use for 30,000 hours Trouble free and maintenance-free built-in automatic switch, install and use
are more convenient
Main use
This pump adapts to cold pressurized circulation of hot water under 110 degrees Centigrade. This pump absolutely solves the lit fire
properly of shower owing to the lower pressure and unreliable pressure. Installation of the pump can be thoroughly solve the problem;
When the tap water is of low pressure, the pump can boost pressure. It can also boost pressure for solar water heaters; water supply
for washing machine when lower pressure; boost pressure and circulate hot water for boilers; boost pressure and circulate liquid for I
ndustrial equipments; also some pumps body made of special engineering materials, high strength, corrosion resistant, acid alkall
resistant and stainless, Parts of pump body adopt copper material, so that domestic using water is more sanitar
Operaring conditions
transmission medium temperature range: 0 degrees +100 degrees
the maximum ambient temperature: +40 degrees
medium requirements: clean, free of solid debris, non-mineral oil-based, non-sticky, non-corrosive
the chemical nature: the quality seems neutral, non-explosive liquid similar to water(high content of 30% ethylene glycol)
taken from other liquids should first consultative manufacturers
maximum working pressure: lObar
the minimum inlet pressure
Temperature at 50 degrees 0.05bar
Temperature at 95 degrees 0.3bar
Temperature at 110 degrees 1.obar
