Motor
Adopted the NEMA standard
*Power: 0.55 to 2.2 kW(Single phase)
*Insulation class: B
*Protection grade: IP 58
*Maximum diamete r: 93mm
*Highest temperature of liquid: 35℃

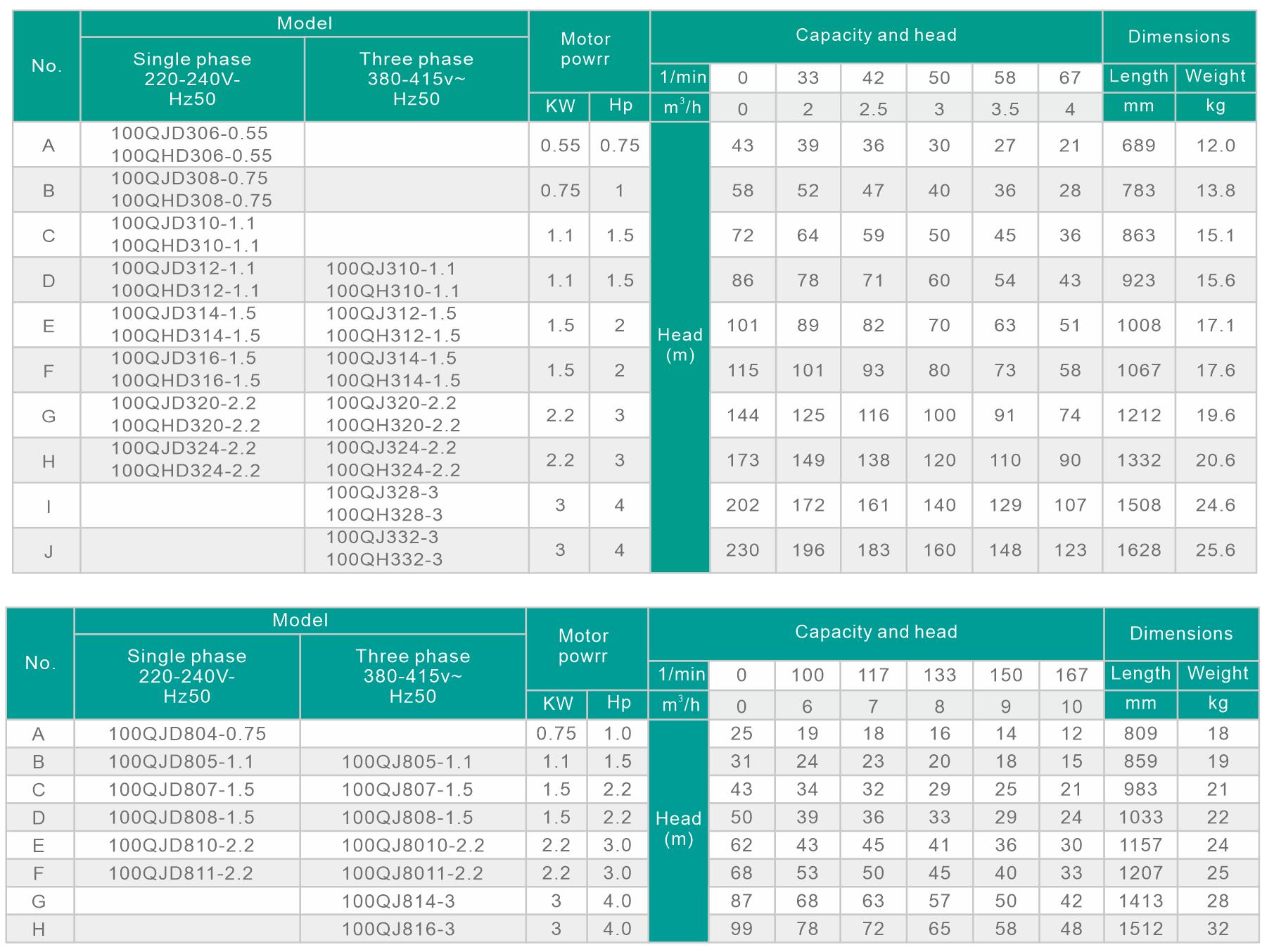

TECHNICAL DATA: -Pump
*Qmax: 5(m3/h)
*Capacity from 2.5 to 3. 5(m3/h)
*Total head from 183 to 27(m)
