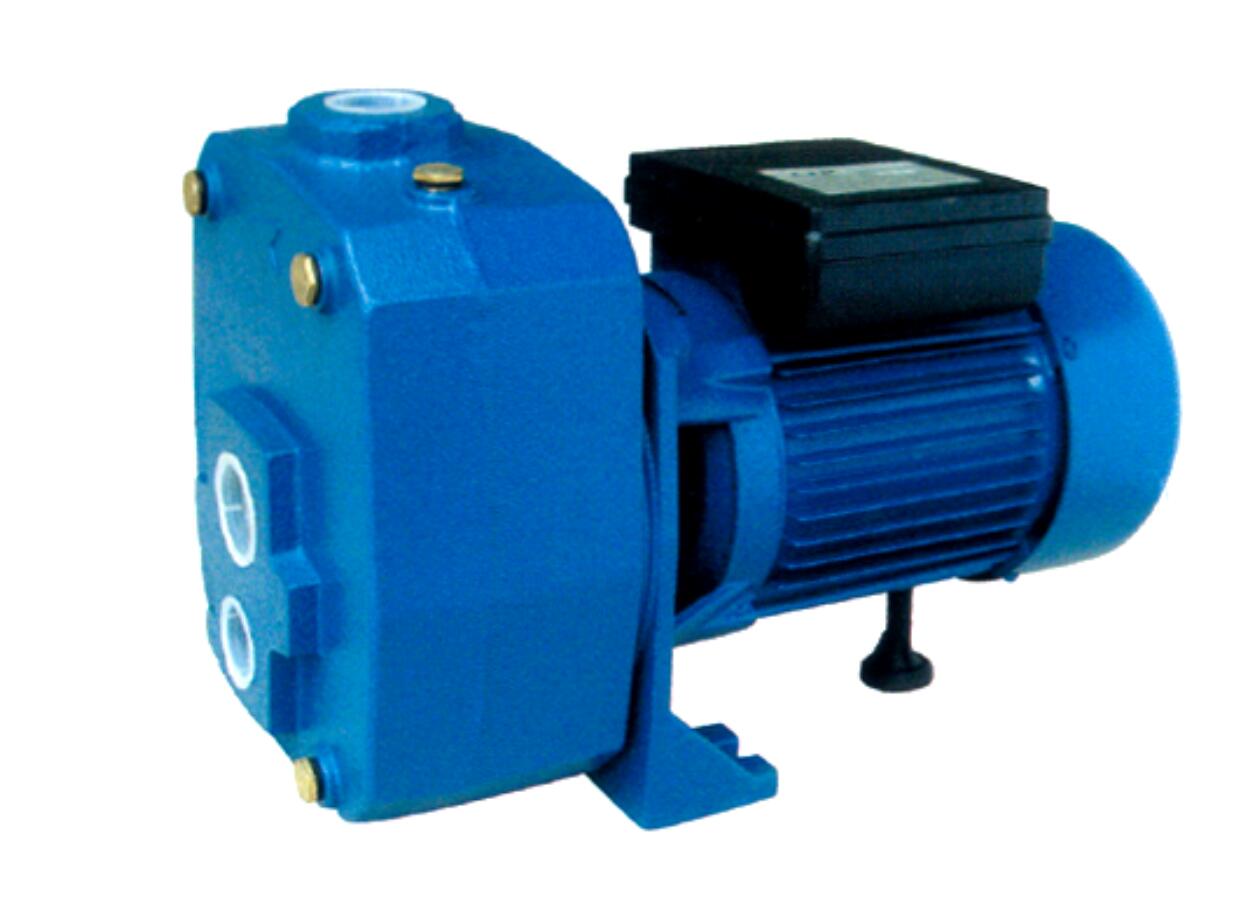

Application
Deep well self-priming water pumps installed above ground with
the jet body submerged guarantees function even when
the static level of the well water falls as far as 25 meters below
the level of the installed pump. So they are extremely reliable
economical and simple to use and find manyusages in domestic
applications and the automatic distribution of water from small
and medium-sized surge tanks, watering gardens, etc. In all
cases where the suction depth exceeds the normal capacity
(9 meters) for sudace pumps
Suitable for pumping clean water and liquid which are not chemically
aggressive to the pump components
Operating Conditions
Max working pressure 4.8 bar
Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 40mt
Continuous duty
Motor
Two-pole induction motor (n=2850r. p. m)
Insulation class B
Protection IP44
Material
Pump body: Cast iton

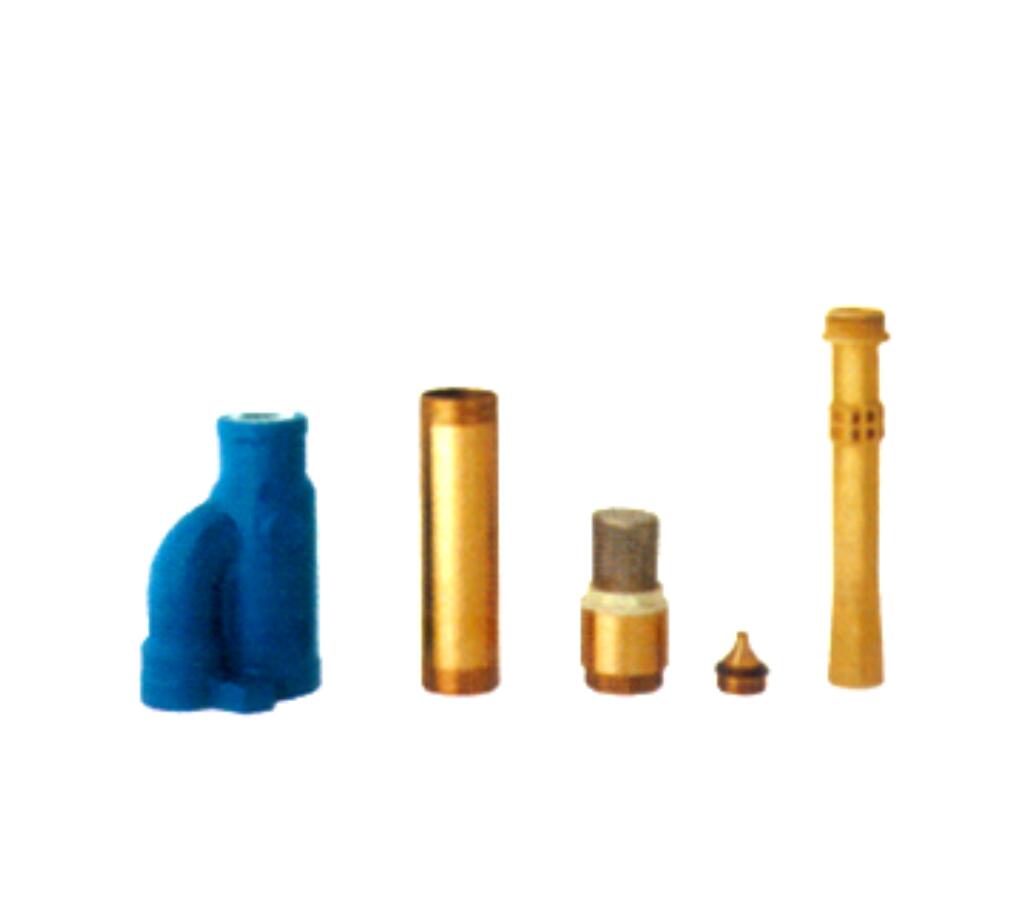

Jet body: Cast iron
Motor support: Cast iron
Impeller: Brass
Diffuser: Noryl
Shaft with rotor: 45# Steel. AlSI 416
stainless steel if request
Mechanical seal: Carbon Ceramic
Single phase 220V-240V/50HZ
Single phase 1 10V-127V/60Hz If request
Single/three phase 220V/60Hz If request
