Application

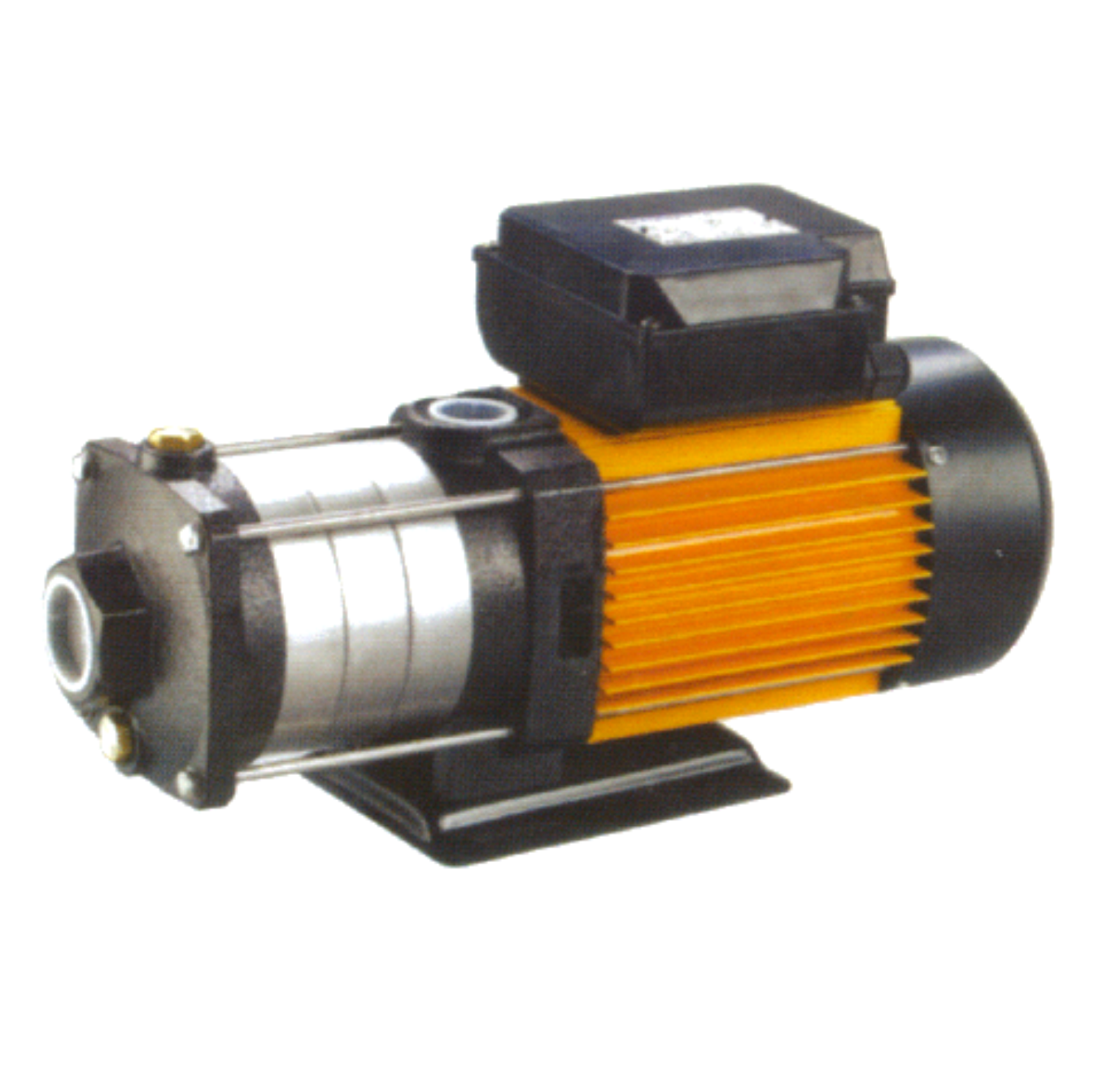

Centrifugal multistage low head water pumps for flow irrigation
systems with high flow rates. Suitable to pump clean water or
non-aggressive liquids charged with small soild impurity.
To be used in flow irrigation systems in gardening, agricultural
and industrial fittings
Operating conditions
Max, working pressure 5bar.
liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9mt
Continuous duty
Motor
Two-pole induction motor(n=2850r-p. m)
Insulation class B
Protection Ip44
